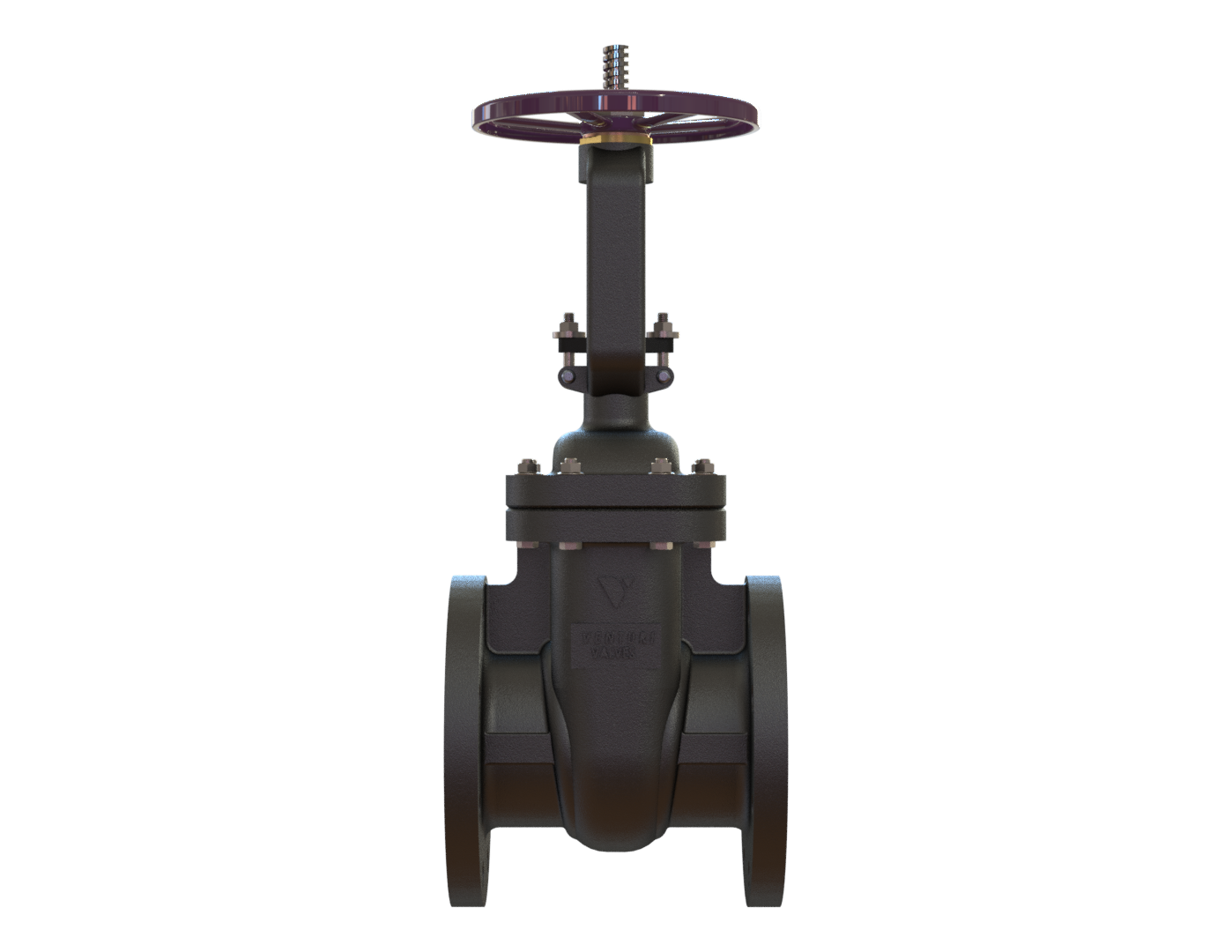

Metal Seated Gate Valves

Metal-seated gate valves consist of a metal body and a metal gate that moves along the flow path. The gate’s seats are located inside the body and ensure that the gate opens and closes smoothly. Metal seats have a durable structure that ensures long-term and reliable operation of the valve.

Metal-seated gate valves, manufactured in accordance with EN standards, are typically used in high-pressure and high-temperature applications.

▪ SIZES

DN50 (2”) – DN650 (26”)

▪ APLICATIONS

 WATER, STEAM, GAS, OIL

OIL, OIL DERIVATIVES

▪ MATERIAL

CAST IRON

DUCTILE IRON

CAST STEEL

STAINLESS STEEL

DUPLEX STAINLESS STEEL

BRONZE ALLOYS

▪ CONNECTION STANDARD

FTF ASME B16.10 / EN 1759-

FLANGEASME B16.5 / EN 1759-1

BW ASME B16.25

NPT/SW ASME B16.11

▪ WORKING PRESSURE

CL150 – CL1500

PN16 – PN160

▪ DESIGN STANDARD

ASME B16.34

EN 558-1

▪ WORKING TEMPERATURE

 -196 °C / + 600 °C

▪ OPTIONS

ELECTRIC OR PNEUMATIC ACTUATOR

LOCATION INDICATOR

BYPASS VALVE
